FACILITIES

Annual Capacity

1200 MT

Single Piece weight max

800 kg

Weight Range

15 kg to 800 kg

Material Grades

Carbon steel, Alloy steel, Stainless steel, Duplex steel and Ni based alloys.

Total Area

5000 sq mtr

Installed power

740 KVA

Captive power

625 KVA
65 KVA Generator

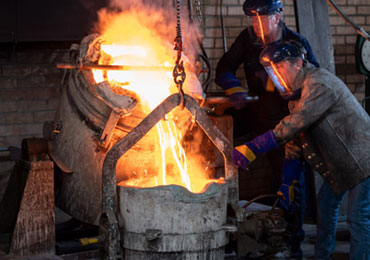

Furnace

450 KW medium frequency furnace with 500 Kg Crucible 1 no And 1500 Kg Crucible 1 no

Moulding

Complete facility for Co2 Process hand moulding Co2 and 3 Part Oil Process (air set) for core.

Pattern shop

We have well Equipped Pattern shop for manufacturing and maintaining all kinds of Pattern with CAD/CAM facility.

Heat Treatment

2.5 MT Electric Heat treatment Furnace with moving Bogie with Quenching Tank.
Calibrated to API 6A- annex P under IBR and TUV India for maximum 1200°C.

Fettling

In house Fettling shop with 500 kgs Shot blasting, 4 swing frame grinding m/c's, 16 hand grinding m/c's, 4 welding Rectifiers with air goughing facilities and Acid Pickling and Passivation facilities.

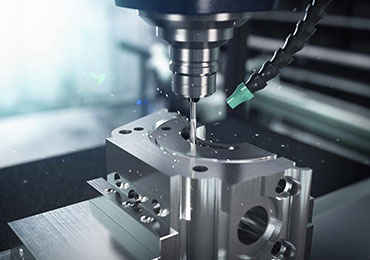

Machining

In house machining facilities available to machine up to 8" body and bonnet, Gage, Rod etc.

Induction Furnace

450KW power track– 500 kgs and 1500 kgs crucible

Moulding process

Hand moulding Co2 process, No bake method.

High speed sand muller: 50 kgs and 250 kgs

Sand drier: output 2 ton per hour

Sand bunk : 120 MT

Well equipped pattern shop for Storage, Risering, Mounting and maintaining all patterns.

Surface table

1800 mm X 1200 mm Surface table – 1 no

a.

2.5 MT Electric Heat treatment Furnace with moving Bogie with Quenching Tank.

b.

Calibrated to API 6A- annex P under IBR and TUV India for maximum 1200°C.

Grinding

Swing grinding 4 nos.

Flexible shaft grinding 16 nos

Shot blasting

500 kgs hook type – 1 no

Welding

4 welding rectifiers

Acid Pickling and Passivation

Avaliable
