PRODUCTS
| Valves Type |
Item |
Size |
Pressure Range |

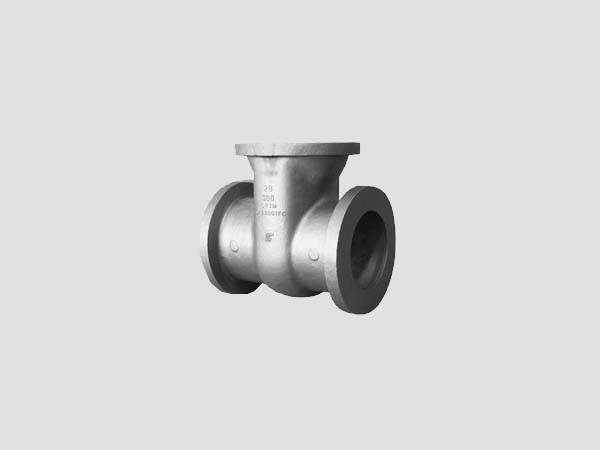

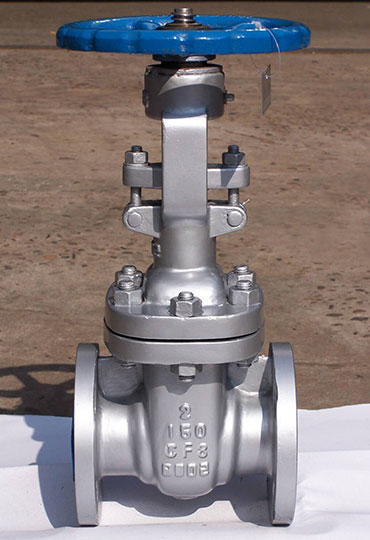

Gate Valve |

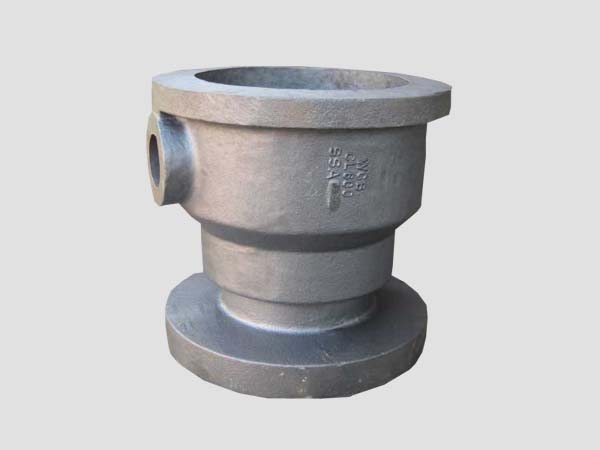

Body
Bonnet
Disc
Adapter
Ball
Cage
Plug
Yoke
Expander
Reducer
|
2" to 16" |
ANSI 150 - 5000
DIN PN16 - 400 |
Globe Valve |

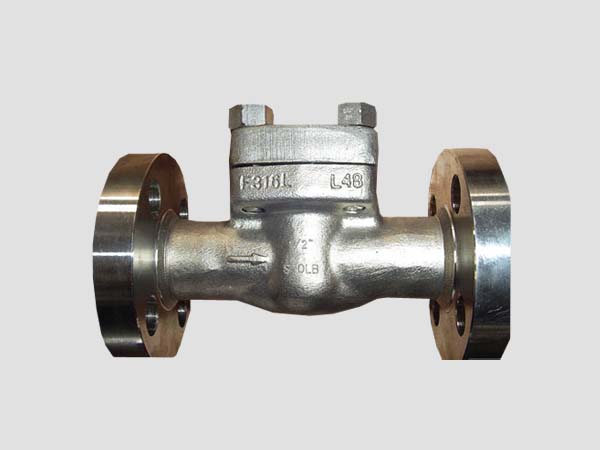

Swing check Valve |
Control Valve |
knife Edge Gate Valve |
Safety Relief Valve |
Ball Valve |

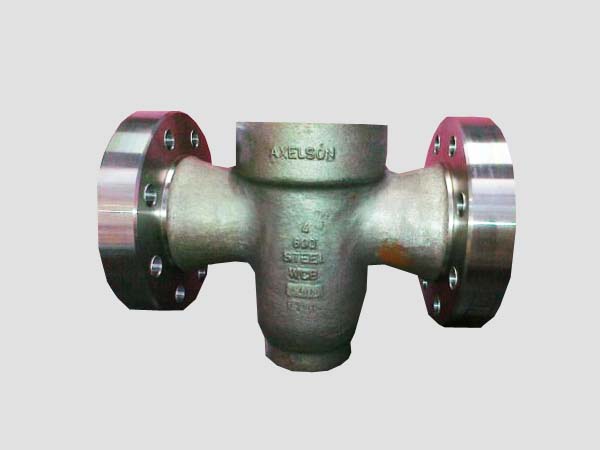

Plug Valve |
Butterfly valve |

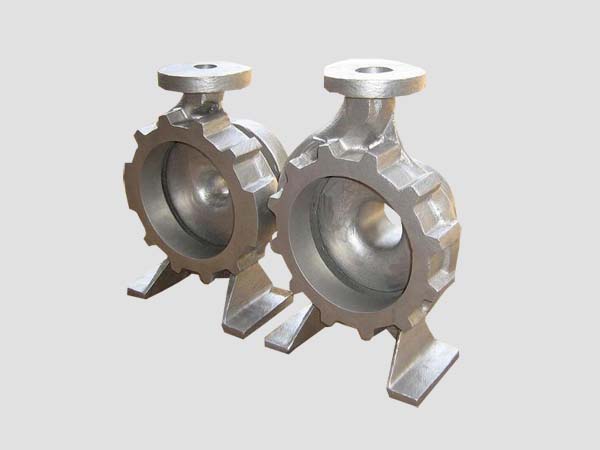

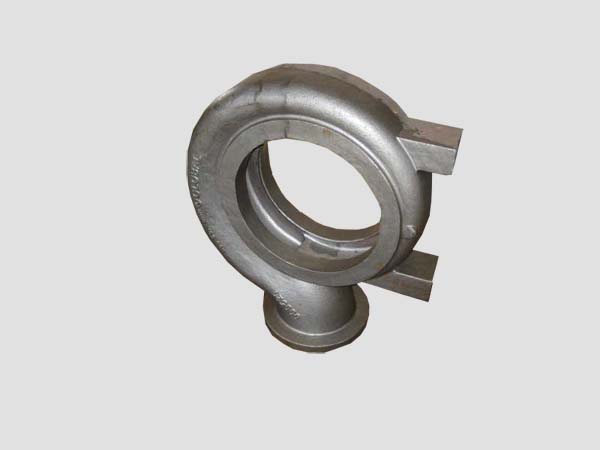

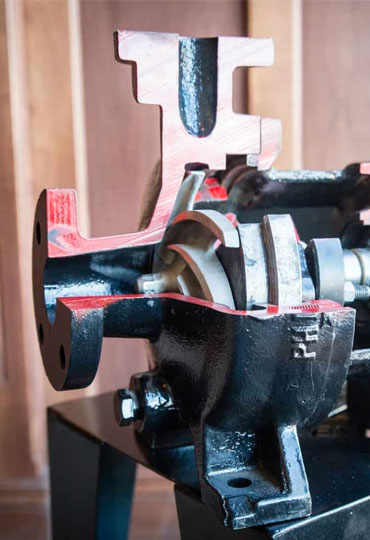

| a. | Casing |
| b. | Impeller |
| c. | Stuffing Box |
| d. | Wear Plate |
| e. | Wear Ring |
| f. | Suction Cover |
| g. | Gland |

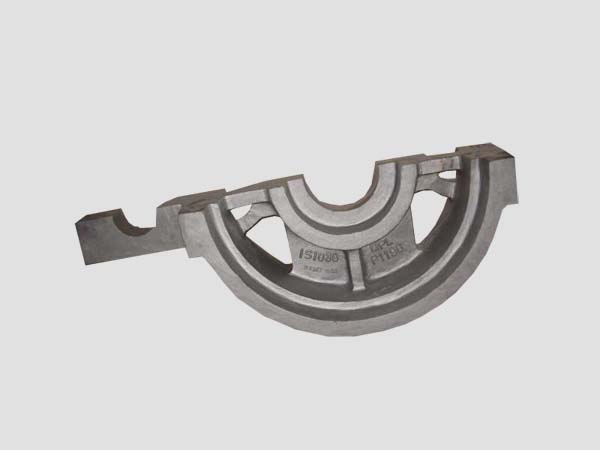

| a. | Engine Housing |
| b. | Gear Box Housing |
| c. | Bearing Housing |
| d. | Planet Carrier |
| e. | Input & Output Bracket |
| f. | Mounting Bracket |
| g. | Cage & Cage plate |
| h. | Helical Gear |
| i. | Bevel Gear |
| j. | Gear Wheel |
| Carbon Steel |
. ASTM A216 Gr: WCB, WCC
. EN10213: 1.0619, 1.0625
. IS1030, IS2707
. BS3100 Gr: A2, A5
. EN8 |
Carbon Steel
(For Low temp application) |
. ASTM A352 Gr: LCB, LCC & 1C
. EN10213: 1.6220 |
| Low Alloy Steel |
. ASTM A217 Gr: WC5, WC6, WC9, C5,
. ASTM A487M Gr: 4C(60K), 4D(75K)
. EN10213: 1.7357, 1.7379
. EN19, GS42CrMo4
|
| Martensite Stainless Steel |
. ASTM A217 Gr: CA15, CA40
. ASTM A352/A743 Gr: CA6NM |
| Stainless Steel |
. ASTM A351 Gr: CF3, CF3M, CF8, CF8M, CF8C
. CN7M
. EN10213: 1.4308, 1.4408 |
| Duplex Steel |
. ASTM A890/A995 Gr: CD3MN (4A), CE3MN (5A), CD3MWCUN(6A),
CK3MCUN
CD4MCu, |
| Precipitated Hardened Steel |
ASTM A747 Gr : CB7Cu 1 |
| Nickel based Alloys |
. CW6MC (Inconel 625) |
Note: Any grades of ASTM, DIN, IS, JS, EN based on the customer requirements can be casted. |
|
Value Addition - (Machining)
We supply fully machined and Proof machined castings based on customer requirements.
We can also execute sub-assemblies and full assembly of valve and other engineering items as per customer requirements.
|
